Machine Compatibility
Prelude 360, 340, Daisy 335, 330, 325, 320, 315, 310, HV 250, 230, 225, 215, 210, 205,Scandinavia 100, Eden Rose 250M, Tribute 140M, Emerald 122, 118, 116
Rose 605, 600, Iris, Lily 555, 550, 545, 540, 535, 530, HV 500, Interlude 445, 435, Freesia 425, 415, HV 400, 350, Scandinavia 400, 300, 200, Emerald 183, 203, Designer Jade 35, Jade 20, Opal 650, 670
Designer Diamond Royale, Designer Diamond Deluxe, Designer Diamond, Designer Sapphire 85, Designer Ruby Royale, Designer Ruby Deluxe, Designer Ruby, Designer Topaz 65, 55Q, 50, 40, 30, 25, 20, Designer SE, SE LE, Designer 1, 11, Quilt Designer 1, 11 Sapphire 965Q, 960Q, 930, 875Q, 855, 850, 835, 830, Designer Brilliance 80, 75Q, Opal 690Q, Tribute 140C
Interchangeable Dual Feed
Description
The Dual Feed Foot with changeable presser feet is designed to feed layers of fabric and/or batting evenly. It is perfect for quilting, sewing velvet, stretch fabrics, imitation leathers, and fabrics that need precise pattern matching.
sewing velvet, stretch fabrics, imitation leathers, and fabrics that need precise pattern matching.
$299.00
- UPC:
- 7393033048037
Description
Description
Not suitable for: EMERALD™ Series, EDEN ROSE™ 250M, TRIBUTE™ 140M and TRIBUTE™ 145M.

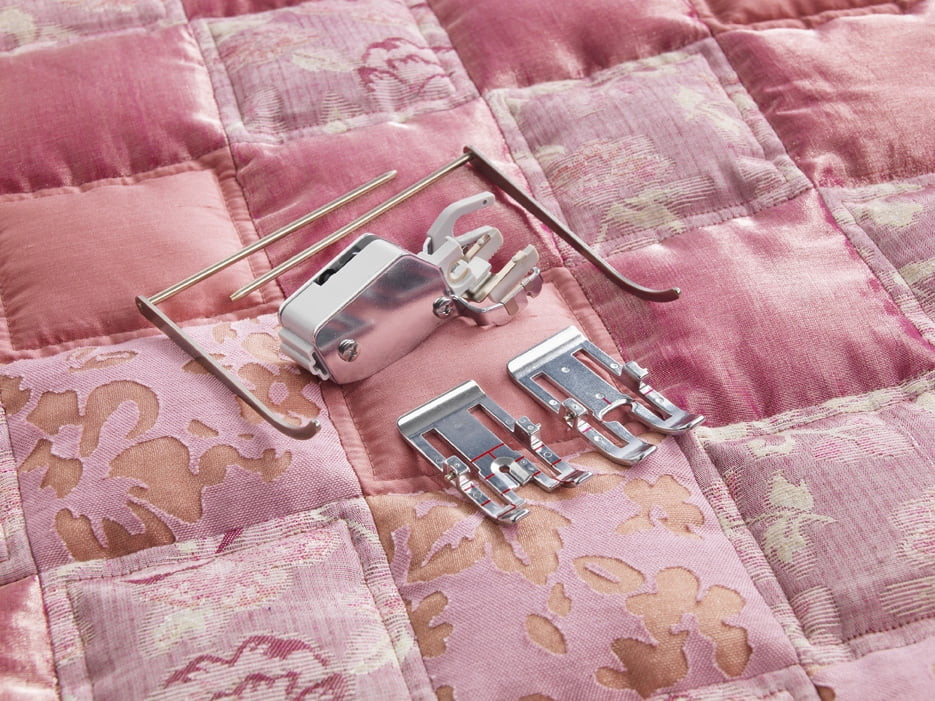

The Dual Feed Foot with changeable presser feet is designed to feed multiple layers of fabric and batting evenly. It is ideal for quilting, sewing velvet, stretch fabrics, imitation leather and fabrics that require precise pattern matching.
Snap on the Changeable Straight Stitch Foot and select a centre needle straight stitch with a maximum stitch length of 6mm. Snap on the Changeable Zigzag Foot for stitches up to 7mm wide and 6mm long.
How to use:
How to use:
- Remove the presser foot ankle by unscrewing the ankle screw.
- Position the Dual Feed Foot from the back of the machine, ensuring the fork fits over the needle clamp screw. Attach it to the presser foot bar using the ankle screw and reduce the presser foot pressure to 3.
Attaching and Removing the Changeable Presser Foot:
- With the presser foot bar raised, place the presser foot underneath the Dual Feed Foot.
- Push the changeable foot upward until it snaps securely into place.
- To remove the foot, push the front of the foot upward until it releases.
How to Attach the Guide:
The two included guides help you sew parallel rows of stitching for techniques such as channel quilting and tucking. One guide is designed for the left side and the other for the right.
- Insert the guide into the hole at the back of the Dual Feed Foot.
- Adjust the distance between the foot and guide by sliding the guide left or right.
Additional information
Additional information
| Weight | 0.500 kg |
|---|---|
| Brand | Husqvarna Viking |
